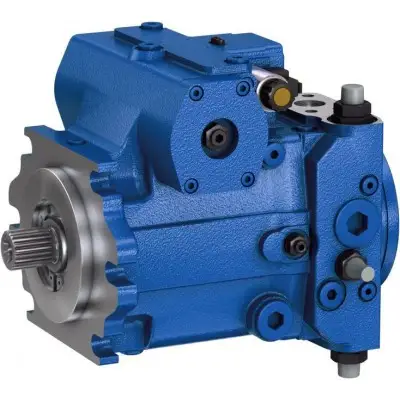

Description High-pressure double pump for mobile machines with multi-circuit systems Size 280 Nominal pressure 350 bar Maximum pressure 420 bar Open circuit Features Compact design Special control devices for for mobile applications One common suction port High total efficiency Low operating noise High power density With charge pump Swashplate design Technical data Table of values Size 280 Version With charge pump Displacement (per rotary group) Vg max cm³ 280 Nominal pressure pnom bar 350 Maximum pressure pmax bar 420 Maximum speed 1) at Vg max nnom rpm 1900 Flow pump 1 at Vg max and nnom qV nom1 l/min 532 Flow pump 2 at Vg max and nnom qV nom2 l/min 532 Power at qV nom and pnom P kW 620 Torque at Vg max and pnom M Nm 3120 Weight (approx.) m kg 305 1) These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt Ordering codes Currently eShop is not available. Please try again later. Downloads Ogólna instrukcja obsługi jednostek tłokowych osiowych Manual | R-PL90300-B | 2021-04-21 | Polish | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Instrukcja obsługi Общая инструкция по эксплуатации аксиально- поршневых агрегатов Manual | R-RS90300-B | 2021-04-21 | Russian | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Инструкция по эксплуатации Manual de instrucciones generales para unidades a pistones axiales Manual | RS90300-B | 2021-04-21 | Spanish | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Manual de instrucciones Allgemeine Betriebsanleitung für Axialkolbeneinheiten Manual | RD90300-B | 2021-04-21 | German | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Betriebsanleitung Manuel d'utilisation général pour unités à pistons axiaux Manual | RF90300-B | 2021-04-21 | French | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Manuel d'utilisation General instruction manual for axial piston units Manual | RE90300-B | 2021-04-21 | English | PDF | 2.1MB Product Groups: Axial piston pumps, Axial piston pumps Instruction Manual 轴向柱塞单元一 般说明手册 Manual | RC90300-B | 2021-04-21 | Chinese | PDF | 2.4MB Product Groups: Axial piston pumps, Axial piston pumps 说明手册 Axial piston variable double pump A28VLO series 10 Data Sheet | RE93110 | 2016-04-01 | English | PDF | 2.9MB Product Groups: Pumps, Variable pumps, open circuit Axialkolben-Verstelldoppelpumpe A28VLO Baureihe 10 Data Sheet | RD93110 | 2016-04-01 | German | PDF | 2.9MB Product Groups: Pumps, Variable pumps, open circuit
