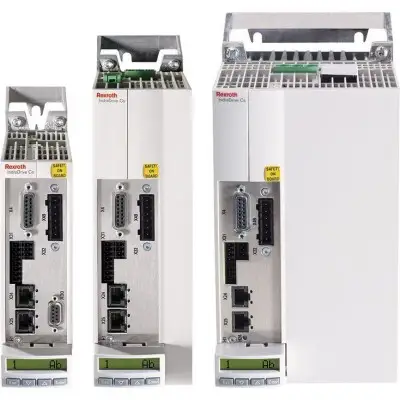

IndraDrive Cs HCS01 - Single-axis converters

Description 0.15 kW ... 14 kW power range 3.3 A ... 54 A maximum current 110 V ... 500 V direct power supply High overload capacity Compact design for single-axis applications Product description The IndraDrive Cs (HCS01) compact converters cover the lower kW range of the power range. They combine power and control units in a single unit, and offer Ethernet-based communication, a multi-encoder interface, and integrated safety technology. Type code 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 HCS 01 . - - - - - - - - - - 01 IndraDrive Cs - HCS01 HCS 02 Line 01 Variant 03 1 1 Power supply unit 04 Rectifier E Type of cooling 05 Internal air W Maximum current 06 3 A 0003 5 A 0005 6 A 0006 8 A 0008 9 A 0009 13 A 0013 18 A 0018 28 A 0028 54 A 0054 Protection type 07 IP20 A Mains connection voltage 08 3 x AC 110 ... 230 V 02 3 x AC 200 ... 500 V 03 Control unit version 09 ADVANCED A BASIC B ECONOMY E Communication 10 Sercos III/EtherCAT® S3 Sercos III Master (cross communication) CC Multi-Ethernet ET Interface 1 11 Multi-encoder interface EC Interface 2 12 CANopen CN Digital/analog I/O expansion DA Multi-encoder interface EC Engineering port EP Encoder emulation EM Multi-Ethernet ET Not equipped NN PROFIBUS PB Interface 31) 13 STO (Safe Torque Off) L3 STO (Safe Torque Off) and SBC L4 Not equipped NN Safe Motion S4 Safe Motion S5 Safe Motion Bus SB Other version 14 None NN Firmware 15 With ADVANCED operating panel, firmware must be ordered separately ​AW With operating panel, firmware must be ordered separately FW Without operating panel and firmware NW 1) The L3, S4, S5 and SB interfaces ensure both the function and its certification. Technical data General data Type HCS01.1E-W0003-A-02 HCS01.1E-W0006-A-02 HCS01.1E-W0009-A-02 HCS01.1E-W0013-A-02 HCS01.1E-W0018-A-02 HCS01.1E-W0005-A-03 HCS01.1E-W0008-A-03 HCS01.1E-W0018-A-03 HCS01.1E-W0028-A-03 HCS01.1E-W0054-A-03 Protection type overall IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 Degree of contamination 2 2 2 2 2 2 2 2 2 2 Type of cooling Unventilated Forced ventilation Performance data Type HCS01.1E-W0003-A-02 HCS01.1E-W0006-A-02 HCS01.1E-W0009-A-02 HCS01.1E-W0013-A-02 HCS01.1E-W0018-A-02 HCS01.1E-W0005-A-03 HCS01.1E-W0008-A-03 HCS01.1E-W0018-A-03 HCS01.1E-W0028-A-03 HCS01.1E-W0054-A-03 Continuous current A 1.1 2.1 3 4.4 7.6 1.8 2.7 7 11.5 21 Maximum current A 3.3 6 9 13 18 5 8 18 28 54 Mains connection voltage 1 AC 1) V 110 ... 230 110 ... 230 110 ... 230 110 ... 230 110 ... 230 - - - - - 3 AC V 110 ... 230 110 ... 230 110 ... 230 110 ... 230 110 ... 230 200 ... 500 200 ... 500 200 ... 500 200 ... 500 200 ... 500 Tolerance % ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 ± 10 Mains frequency Hz 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 50 ... 60 Frequency tolerance Hz ± 2 ± 2 ± 2 ± 2 ± 2 ± 2 ± 2 ± 2 ± 2 ± 2 Mains input continuous current A 0.6 1.2 2.3 4.5 9.6 1.5 2.5 5 8 25 1) Single-phase operation possible, derating for HCS01.1E-W0013-A-02 and -W00
