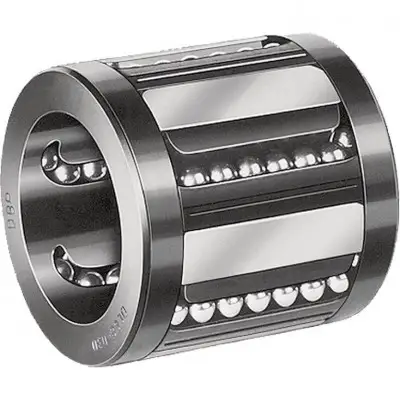

Description Designed especially for general requirements Stainless steel for the medical, chemistry and food industries Separate wiper seals optional Segmental load bearing plates made of 1.4300 steel Balls made of 1.3541 steel Features Ball retainer and retaining rings made of PA 11 Technical data General technical data Ø d mm 12 16 20 25 30 40 amax m/s² 150 vmax m/s 3 m kg 0.013 0.02 0.031 0.057 0.096 0.17 FR 1) N 1.5 2 2.5 3 4 5 Breakaway force N 3 4.5 5 7 9 12 μ 2) 01 ... 04 Rows of balls 5 6 Shaft radial clearance h6/bore H7 µm + 32 0 + 33 - 1 + 36 0 + 42 - 1 Shaft radial clearance h6/bore K7 µm + 17 - 15 + 18 - 16 + 18 - 18 + 21 - 22 Operating conditions Permissible ambient temperature (min ... max) -10 °C ... +65 °C 1) Frictional drags generated by Linear Bushings with seals on both ends when not under radial load. This depends on speed and lubrication. 2) Friction coefficients of unsealed Linear Bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. Load capacities and load moments Ød mm 12 16 20 25 30 40 Cmin N 240 360 510 820 1200 1940 Cmax N 290 430 540 870 1270 2050 C0min N 330 490 690 1090 1570 2610 C0max N 490 730 890 1400 2000 3340 The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. Legend Symbol Description Unit Ød Shaft diameters mm amax Maximum acceleration travel m/s2 Cmax Maximum dynamic load rating N Cmin Minimum dynamic load rating N C0max Maximum static load rating N C0min Minimum static load rating N FR Friction force N m Mass kg vmax Maximum permissible speed m/s μ Friction coefficient Effect of load direction on load rating The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used. Reduced load capacity with short stroke In case of a short stroke, the service life of the shaft is less than that of the segmental Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s . Definition of dynamic load ratings Dimensions Dimensions Ød mm 12 16 20 25 30 40 D mm 20 25 30 37 44 56 C js14 mm 24 28 30 37 44 56 Project planning information Selection guide for operation under difficult conditions For constantly humid or damp conditions caused, for instance, by water-based coolants/lubricants, we recommend the stainless steel Linear Bushing with parts made of steel in accordance with ISO 683-17 / EN 10088. Life expectancy calculation Mounting Installation Install the segmental Linear Bushings using an arbor press (see Gener
