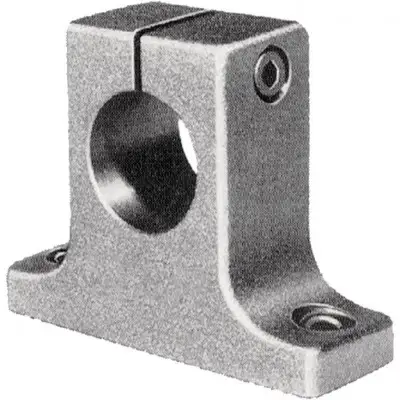

Description Material: Spheroidal graphite cast iron and steel Side clamping Features For easy installing and quick aligning Precise design with reference edge More affordable than in-house designs Technical data Ød mm 8 12 16 20 25 30 40 50 60 80 m kg 0.04 0.06 0.12 0.22 0.37 0.55 0.97 1.9 3.6 7.3 Legend Symbol Description Unit Ød Shaft diameters mm m Mass kg Dimensions Abmessungen Ød mm 8 12 16 20 25 30 40 50 60 80 A 1) mm 32 42 50 60 74 84 108 130 160 200 A1 1) mm 16 20 26 32 38 45 56 80 100 130 B 1) mm 10 12 16 20 25 28 32 40 48 60 d H8 mm 8 12 16 20 25 30 40 50 60 80 E 25 mm ±0.15 32 mm ±0.15 40 mm ±0.15 45 mm ±0.15 60 mm ±0.15 68 mm ±0.2 86 mm ±0.2 108 mm ±0.2 132 mm ±0.25 170 mm ±0.5 H 2) 15 mm ±0.01 20 mm ±0.01 25 mm ±0.01 30 mm ±0.01 35 mm ±0.01 40 mm ±0.01 50 mm ±0.01 60 mm ±0.015 75 mm ±0.015 100 mm ±0.015 H1 1) mm 27 35 42 50 58 68 86 100 124 160 SW mm 2.5 3 4 5 6 8 10 S 3) mm 4.5 5.5 6.6 9 11 13.5 17.5 V 1) mm 5 5.5 6.5 8 9 10 12 14 15 22 1) Tolerance ISO 8062-3 - DCTG 11. 2) In relation to nominal shaft dimension "d" 3) Cylinder bolts ISO 4762-8.8 Project planning information Life expectancy calculation Certification Directives and standards Safety Instructions Notes Ordering codes Materialnummern Ød Part number Short product name CAD data Buy mm 8 R105500800 WBG-8 12 R105501200 WBG-12 16 R105501600 WBG-16 20 R105502000 WBG-20 25 R105502500 WBG-25 30 R105503000 WBG-30 40 R105504000 WBG-40 50 R105505000 WBG-50 60 R105506000 WBG-60 80 R105508000 WBG-80 Legend Symbol Description Unit Ød Shaft diameters mm Explanation of short product name using sample shaft support block WBA-30-C-FO Shaft support block example WBA-30-C-FO Type Shaft support block = WB Material (housing) Cast iron = G Aluminum = A Steel = S Shaft diameters = 30 Design type Compact = C Mounting Top securing = FO For aluminum framing systems = P Flanged type = F Explanatory example of the short product name WB G 20 Shaft support block Spheroidal graphite cast iron Ø20 Downloads Linear Bushings and Shafts Manual | R320103669 | 2005-07-01 | English, French, German, Italian | PDF | 3.6MB Product Groups: Linear Bushings and Shafts Linear Bushings Catalog | R999000488 | 2015-02-01 | English | PDF | 14.9MB Product Groups: Linear Bushings and Shafts
