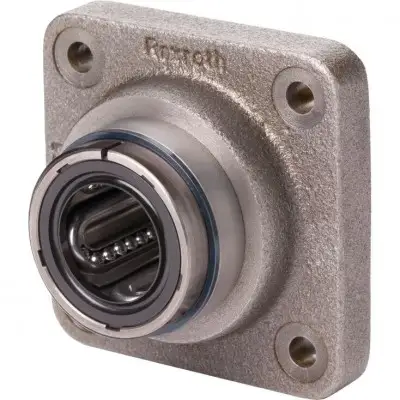

Description Flanged housing (lamellar graphite cast iron) Standard Linear Bushing with wiper seals Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40 Radial clearance not adjustable Product description Linear Sets with standard Linear Bushings, flanged type. This modular unit complements the Linear Set series and is used for designs with a vertical shaft. Technical data General technical data Ø d mm 12 16 20 25 30 40 50 60 80 amax m/s² 100 50 vmax m/s 2.5 2 m kg 0.11 0.18 0.33 0.63 1 1.9 4 7.4 14.7 FR 1) N 2 3 4 5 6 8 10 12 15 Breakaway force N 6 9 12 14 18 24 30 36 45 Shaft radial clearance h6 2) µm + 20 + 5 + 22 + 5 + 23 + 6 + 25 + 6 + 30 + 7 + 33 + 7 + 37 + 8 Operating conditions Permissible ambient temperature (min ... max) -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C -10 °C ... +100 °C 3) -10 °C ... +80 °C 1) Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. 2) Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the Linear Bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the "H6H7" column under "Radial clearance" for the R0610 standard Linear Bushing. 3) for standard Linear Bushings without wiper seals Load capacities and load moments Ød mm 12 16 20 25 30 40 50 60 80 C 1) N 420 580 1170 2080 2820 5170 8260 11500 21000 C0 1) N 280 440 860 1560 2230 3810 6470 9160 16300 1) The load ratings indicated are minimal values as the orientation and direction of load cannot always be clearly defined. The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. Legend Symbol Description Unit Ød Shaft diameters mm amax Maximum acceleration travel m/s2 C Dynamic load capacity N C0 Static load capacity N FR Friction force N m Mass kg vmax Maximum permissible speed m/s Impact of load direction on load rating of closed Linear Bushings The listed load ratings should be chosen depending on installation in minimum or maximum position and should be based on the calculations. If the load direction is clearly defined and the Linear Bushings can be installed in maximum position, the load ratings Cmax. (dynamic load rating) and C0 max (static load rating) can be used. If aligned installation is not possible or the load direction is not defined, the minimum load ratings must be used. Definition of dynamic load ratings Dimensions Dimensions Ød mm 12 16 20 25 30 40 50 60 80 D mm 22 26 32 40 47 62 75 90 120 B 1) mm 42 50 60 74 84 108 130 160 200 D1 24 mm +0.8 28.
