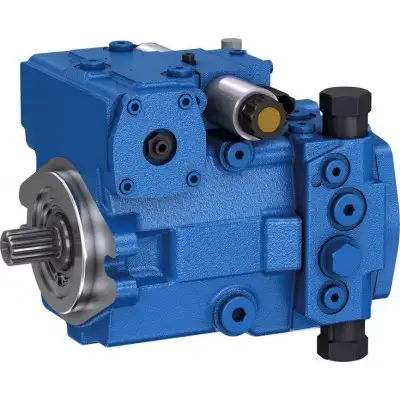

Description Medium pressure motor for closed-circuit applications Size 18 … 63 Nominal pressure 300 bar Maximum pressure 350 bar Closed circuit Features Integrated boost pump for boost and pilot oil supply Flow direction changes when the swashplate is moved through the neutral position High-pressure relief valves with integrated boost function Boost-pressure relief valve Optional with pressure cut-off Large variety of controls Swashplate design Technical data Table of values Size 18 28 45 63 Displacement geometric, per revolution Vg max cm³ 18 28 46 63 Nominal pressure pnom bar 300 300 300 300 Maximum pressure pmax bar 350 350 350 350 Maximum speed at Vg max nnom rpm 4000 3900 3300 3000 Intermittent 1) nmax rpm 5200 4500 3800 3500 Flow at Vg max and nnom qV nom l/min 72 109 152 189 Power at qV nom and Δpnom 2) P kW 36 54.6 75.9 94.5 Torque at Vg max and Δpnom M Nm 86 134 220 301 Weight (approx.) m kg 18 25 27 39 1) At Δp = 70 … 150 bar or Δp 2) Δpnom = 300 bar Downloads Axial Piston Variable Pump A10VG, Series 10 Manual | RE92750-01-B | 2018-06-01 | English | PDF | 1.9MB Product Groups: Pumps, Variable pumps, closed circuit Operating Instructions Axialkolben-Verstellpumpe A10VG, Baureihe 10 Manual | RD92750-01-B | 2018-06-01 | German | PDF | 1.9MB Product Groups: Pumps, Variable pumps, closed circuit Betriebsanleitung Axial Piston Variable Pump A10VG Series 10 Data Sheet | RE92750 | 2020-03-03 | English | PDF | 4.3MB Product Groups: Pumps, Variable pumps, closed circuit Axial piston variable pump AA10VG Series 10 Data Sheet | RE-A92750 | 2020-10-02 | English | PDF | 4.3MB Product Groups: Variable pumps, closed circuit, Variable pumps, closed circuit Axialkolben-Verstellpumpe A10VG Baureihe 10 Data Sheet | RD92750 | 2020-03-03 | German | PDF | 4.3MB Product Groups: Variable pumps, closed circuit, Variable pumps, closed circuit
