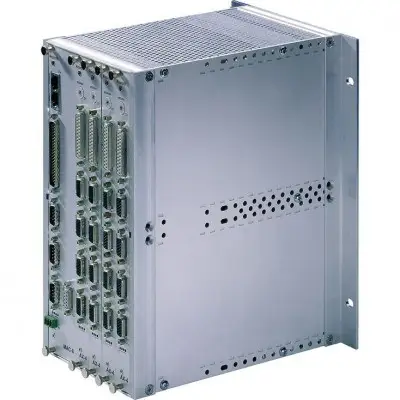

Description The requested product is no longer in our current series product portfolio and is only available to existing customers for a limited time. We recommend using the MLC+H controller family as an alternative for previous applications with the MAC-8. For further information, please contact us. Features The MAC8 is the digital Rexroth multi-axis NC control in modular design. It consists of a master card with no, 2 or 4 axis controllers and can be extended with up to seven slave cards for four axes each, if necessary. It is thus the perfect solution for complex control tasks with up to 32 interpolatable axes. Using local Ethernet, more MAC8 can be connected. The MAC8 communicates with the superior PLC machine control via field bus (PROFIBUS DP or CAN) or via Ethernet. It has special hydraulic control characteristics and is able to control the movements of the machine or machine parts in a completely automatic manner and can thus also accept PLC tasks. Sensors and actuators can also be analyzed and/or activated via CAN bus. Type code 01 02 03 04 05 06 07 08 09 10 VT-MAC8 – 1X / S – M – AX4 * 01 VT-MAC8 02 1X 03 S System with 04 1 slot 1 5 slots 5 8 slots 8 Bus variant 05 No field bus A PROFIBUS DP slave connection P PROFINET RT / EtherNET/IP slave connection E 06 M Master 07 without axis module, with RS485 1 2-axis version, with RS485 2 4-axis version 4 4-axis slave 08 Quantity 0 to 7 09 AX4 10 Further details in the plain text Technical data General Component series 1X Voltage supply Operating voltage UB 18 to 36 VDC / max. 3.6 A Current consumption Master without axes mA 500 Master with axes mA 800 Slave mA 400 Analog inputs Voltage inputs (differential inputs) Input voltage, max. UE max.+10 V to –10 V; 12 bits with 4-fold oversampling Input resistance Re kΩ 160 Resolution mV 5 Current inputs Input current Ie mA ± 20 Ie 4 to 20 mA Input resistance Re Ω 100 Re Ω 500 Leakage current Iv μA 12 Resolution μA 4 Digital inputs Number 32 Logic level log 0 (low) 0 V to +5 V log 1 (high) +10 V to 36 V Input resistance Re 3 kΩ ±10 % Analog outputs Voltage outputs Output voltage U ±10 V PWM (pulse width modulation) Current, max. Imax mA 10 Load, min. Rmin kΩ 2 Current outputs Output current, normalized Inom mA ± 20 Load, max. Rmax Ω 500 Resolution mV 1 Digital outputs Number 24 Logic level log 0 (low) 0 V to +5 V log 1 (high) +10 V to 36 V Connection A ≤ 50 Digital position transducers Incremental transducer with TTL output Input voltage log 0 0 to 1 V log 1 2.8 to 5.5 V Input current log 0 –0.8 mA (with 0 V) log 1 0.8 mA (with 5 V) Frequency, max. related to Ua1 fmax 250 kHz, 24 bit SSI transducer Coding Gray code Data width adjustable up to max. 28 bit Line receiver (TTL) fmax kHz 250 Input voltage log 0 0 to 1 V log 1 2.5 to 5.5 V Input current log 0 -0.5 mA (with 0 V) log 1 0.5 mA (with 5 V) Output voltage log 0 0 to 0.5 V log 1 2.5 to 5.5 V Other characteristics Processor MPC860 and MPC555 Accumulators 16 MB SDRAM, 16 MB Flash, 8 KByte DPR, 4 MB F
