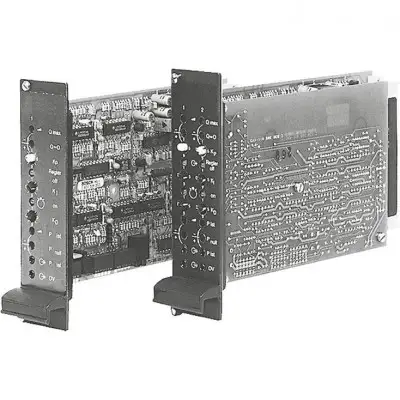

Command value и ramp Модули VT-SWMA3-5-1X

Description Component series 1X Analog, Modular design For controlling valves with integrated or external electronics Features Differential input for voltage 4 internal command values, adjustable and callable Adjustable ramp time, sensitivity and zero point Switchable ramp time range "Ramp off" input Actuating signal output Type code 01 Command value and ramp module VT-SWMA3-5 02 Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) 1X 03 Version: standard V0 04 Option: standard 0 01 02 03 04 VT-SWMA3-5 ‒ 1X / V0 / 0 Technical data General Component series 1X Type of electronics Analog Design Modul Voltage supply Operating voltage Nominal UB V 24 Lower limit value 1) UB(t)min V 21 Upper limit value UB(t)max V 40 Current consumption max. Imax A 0.2 1) rectified alternating voltage Ueff = 21 ... 28 V (one-phase, full-wave rectifier) Analog inputs Command value Voltage 1) Differential input U V ​0 … ±10 callable, internally generated, adjustable U V 0 ... 10 (adjustable with potentiometer P1...P4, reference potential is 0 V) 1) Switchable to 0 ... 10 V by means of digital input Digital inputs Switching voltage command value selection ±10 V or +10 V V 6 ... 40 (I = 2 ... 5 mA) Command value selection ±10 V Port 4 and 5 (mode I + II) for ±Ua Command value selection +10 V Port 4 (mode I) for +Ua or port 5 (mode II) for -Ua Call-up internal potentiometer voltages U V 6 ... 40 (I = 2 ... 5 mA, 4 inputs) Ramp on/off Off (inactive) U V 6 ... 40 (I = 2 ... 5 mA) Analog outputs Voltage U V ​0 … ±10 Adjustment options Zero point calibration information Setting for mode I and II with Ue = ±0.5 V, otherwise for 0 V. Setting range 1 Ramp time up/down t s 0.05 … 5 Setting range 2 Ramp time up/down t s 0.1 … 10 Setting range internal command values U V 0 ... 10 (per potentiometer, summing) Other information Anschlussart 13 screw terminals Mounting type Top hat rail TH35-7.5 or G rail G32 according to EN 60715 Ambient temperature range ϑ °C ​0 … +70 Storage temperature range ϑ °C -20 … +70 Weight m kg 0.39 (For applications outside these values, please consult us!) Operating and display elements Symbols/Circuit diagrams Dimensions Dimensions in mm Dimensions in mm Project planning information load error Commissioning load error Downloads Module de consigne et module de rampe Data Sheet | RF30288 | 2012-07-31 | French | PDF | 763k Product Groups: Analog, Modular design VT-SWMA3-... Sollwert- und Rampen-Modul Data Sheet | RD30288 | 2012-07-31 | German | PDF | 761k Product Groups: Analog, Modular design VT-SWMA3-... Command value and ramp module Data Sheet | RE30288 | 2012-07-31 | English | PDF | 760k Product Groups: Analog, Modular design VT-SWMA3-...
