Усилители клапанов для сервоклапанов VT-SR1-1X Bosch Rexroth

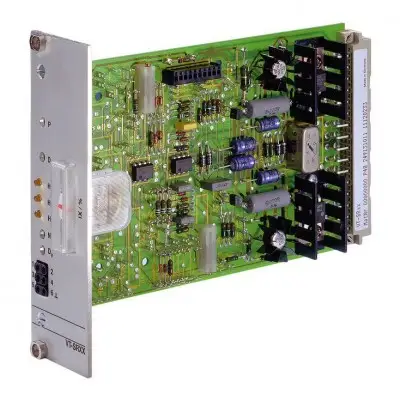

Description Component series 1X Analog, Euro-card format For valves: 4WS2EE 10, 4WRD 16-3X, 4WRD 25-3X Features Voltage input Controller for valve flow and main control spool position Oscillator/demodulator for inductive position feedback Enable input Output stage with dither signal Measuring instrument for valve flow display Reverse polarity protection for the operating voltage Product description The valve amplifiers operate with a push-pull output stage with bipolar transistors. The output of this output stage can be connected or disconnected by means of an enable circuit (relay K2). The enable is indicated by the LED "H2" on the front plate being illuminated. The switching voltage of all relays is defined by means of jumpers J12 and J13 to either 0 V or +UB (factory +UB). The output stage consists of an I controller with connected dither signal generator. The amplitude of the dither signal is set by means of R7. The pre-stage (current command value) is controlled via a PD controller. The actual current value returned is simultaneously indicated by the instrument on the front plate. The oscillator/demodulator senses the control spool position. It is designed as pluggable board the parameters of which are adapted to the respective valve type. The PD controller is supplied the position command value and the position command value and the actual position value with the D share of the controller only affecting the actual value (velocity feedback). The zero point can be set via R3 (NP) from the front plate. The required symmetric operating voltage +UB is protected against reversed polarity. If the board is not equipped with any voltage regulators for supply of the controller and position transducer electronics, an additional stabilized auxiliary voltage ±UM is required. The auxiliary voltage port is protected against reversed polarity up to a maximum current of 1 A. As an option, the amplifier can be equipped with a PID controller (D share only affects the actual value) with a switchable PI share and a backup relay with potential-free changeover contact. This controller can be used to superimpose a further control loop (e.g. for drive control). The P and D share can be set at the front plate. The controller switching status is indicated by the LED "H1", the relay at LED "H3" (LEDs illuminated if relays are applied). The PID controller fitting is customer-specific and therefore has to be specified in the order in plain text. These amplifiers receive a special type designation upon delivery. The backup relay is loadable up to 28 V and 0.5 A. Type code 01 Valve amplifier for servo valves with electrical position feedback VT-SR1 02 Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) 1X 03 Without ±15 V voltage regulator 0 With ±15 V voltage regulator 1 04 For valves: 4WRD 16-3X 4WRD16-3X For valves: 4WRD 25-3X 4WRD25-3X For valves: 4WS2EE 10 4WS2EE10 05 Further details in the plain text * 01 02 03 04 05 VT-SR1 ‒ 1X
