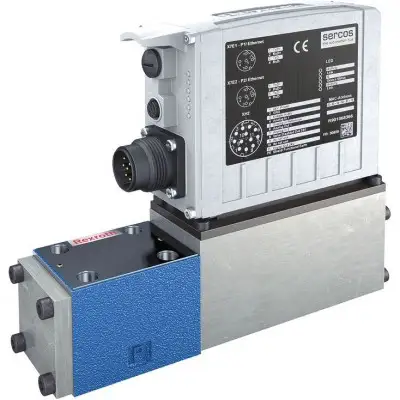

Description Size 6, 10 Component series 2X Maximum operating pressure 350 bar Maximum flow 100 l/min Features Open - Integrated digital axis control functionality (IAC-Multi-Ethernet) - Bus connection/service interface (Sercos, EtherCAT, EtherNet/IP, PROFINET RT, POWERLINK, VARAN) Scalable - 2 configurable analog sensor inputs - 1 input for linear position measurement system (SSI, 1Vpp or EnDat 2.2) Safe - Internal safety function (can be used up to category 4/PL e according to EN13849-1) - CE conformity according to EMC Directive 2004/108/EC Precise - Best-in-class hydraulic controller - High response sensitivity and little hysteresis Product description Set-up The directional control valve with IAC Multi Ethernet electronics mainly consists of: Direct operated directional control valve (1) with control spool and sleeve in servo quality Integrated digital axis controller (2) with: analog/digital interface (XH2) Ethernet interfaces (X7E1, X7E2) analog sensor interfaces (X2M1, X2M2) digital sensor interface (X8M) Directional control valve with integrated axis controller, analog interfaces (X2M1, X2M2), digital interfaces (XH2, X8M) and Ethernet interfaces (X7E1, X7E2) Functional description The IAC Multi Ethernet valve ( I ntegrated A xis C ontroller based on directional control valves) is a digital directional control valve with integrated axis controller and the following functionalities: Position control Pressure/force control Closed-loop speed control Substitutional closed-loop control (position - pressure/force) Substitutional control (flow - pressure/force) pQ function (flow-controlled) This enables, amongst others, the following operating modes: Valve direct control Drive-controlled position control Drive-controlled positioning Positioning block operation The command values are preset via the Ethernet interface (X7E1 or X7E2) or, alternatively, via the analog/digital interface (XH2) The feedback information of the actual value signals to the superior control system is provided optionally either via the Ethernet interface (X7E1 or X7E2) or the analog/digital interface (XH2) The controller parameters are set via the Ethernet interface (X7E1 or X7E2) Monitoring The digital control electronics enable comprehensive monitoring functions/error detection including: Undervoltage Communication error Cable break for analog sensor inputs and digital position measurement system Short-circuit monitoring for analog/digital outputs Monitoring of the microcontroller (watchdog) Temperature of the integrated electronics IndraWorks DS PC program To implement the project planning task and to parameterize the IAC Multi Ethernet valves, the user may use the IndraWorks DS engineering tool (see accessories): Project planning Parameterization Commissioning Diagnosis Comfortable management of all data on a PC PC operating systems: Windows XP (SP3), Windows 7 Safety function The integrated control electronics of the valve enables the additional shut-off of a channel a
