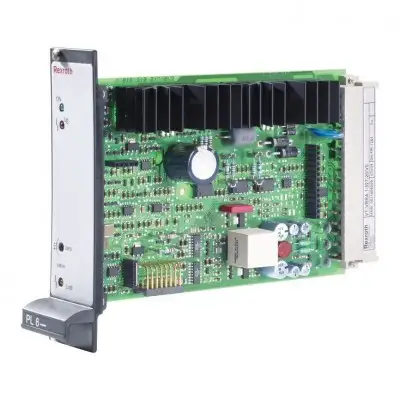

Description Size 6, 10 Component series 1X Max. operating pressure 250 bar Features Direct operated flow control valves NG6 and NG10 Position-controlled, minimum hysteresis The assignment of the hydraulic ports determines the 3-way function (the residual current flows via port P, 3rd way) Adjustable by means of the position-controlled solenoid position, using the position transducer and the external valve electronics For subplate mounting: Porting pattern according to ISO 4401 Product description Proportional flow control valves of type 3FREEZ with position control are offered in sizes 6 and 10. Operation is effected by means of a proportional solenoid with inductive position transducer. The hysteresis is Type code 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 3 FRE Z B ‒ 1X / L 2 G24 ‒ 27 Z4 M M * 01 3-way 3 02 Proportional flow control valve, with position control FRE 03 With inductive position transducer Z 04 Size 6 6 Size 10 10 05 Without external closing of the pressure compensator B 06 Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10 1X Nominal flow 07 Size 6 2,6 l/min 2,6 10 l/min 10 35 l/min 35 Size 10 80 l/min 80 Flow characteristic 08 Linear L 09 Command value presetting + 10 V, Qmax (NC) 2 Supply voltage of the control electronics 10 Direct voltage 24 V G24 Solenoid type (current) 11 Solenoid current maximum 2.7 A 27 Electrical connection 12 Connector according to DIN 43650-AM2 Mating connector included in the scope of delivery Z4 13 Without check valve M Seal material 14 NBR seals M 15 Further details in the plain text * Technical data general Type 3FREZ Size 6 10 Component series 1X Installation position Any Weight kg 2.2 6 Ambient temperature range °C -20 … +50 hydraulic Type 3FREZ Size 6 10 Maximum operating pressure bar 250 Maximum operating pressure Anschluss A bar 250 Port B bar 250 Hydraulic fluid temperature range °C -20 … +80 Viscosity range mm²/s 10 … 800 Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) Class 18/16/13 according to ISO 4406 (c) Hysteresis % ≤ 1 Range of inversion % ≤ 0.5 1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. electrical Type 3FREZ Maximum solenoid current A 2.7 Solenoid coil resistance Cold value at 20 °C Ω 2.7 Duty cycle % 100 Protection class according to DIN EN 60529 IP65 (If a suitable and a correctly mounted mating connector are used.) Downloads Proportional flow control valve, with inductive position transducer Data Sheet | RE29220 | 2005-08-01 | English | PDF | 337k Product Groups: Proportional flow control valves
