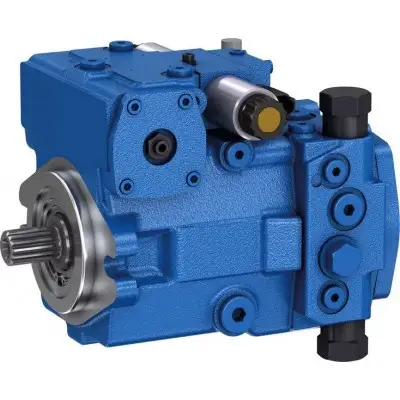

Description Optimized high pressure pump for maximal power requirements up to 500 bar Size 71 … 450 Nominal pressure 450 bar Maximum pressure 500 bar Open circuit Features Slot-controlled swash plate design Long service life Low operating noise Through drive for mounting of further pumps up to same nominal size Axial and radial load capacity of drive shaft Modular system Visual swivel angle indicator Controls with short response times Bearing flushing Swashplate design Technical data Table of values Size 71 125 450 Displacement geometric, per revolution Vg max cm³ 71 125 450 Nominal pressure pnom bar 450 450 450 Maximum pressure pmax bar 500 500 500 Maximum speed at Vg max nnom rpm 2200 1800 1800 Power at qV nom and pnom P kW 117 169 608 Torque at Vg max and pnom M Nm 508 894 3220 Weight (approx.) m kg 65 100 390 Controllers/adjustment devices Electrohydraulic control systems HSx, HMx, EOx Electrohydraulic control systems HSx, HMx, EOx Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control with proportional and control valve Digital electrohydraulic control systems with amplifier Control of swivel angle, pressure and power (HS5P) Usable as a special version in mooring operation (overcenter) Data sheet Spare parts & repair Electronic pressure and flow control DFE1 Electronic pressure and flow control DFE1 Available for A4VSO and A4VBO For the electrohydraulic control of pressure, flow and power Internal pilot pressure or with external control pump, optional Rapid decompression via pump by flow direction change as standard Rotary group optimized for long standby operating times Data sheet Spare parts & repair Electrohydraulic control systems HSx, HMx, EOx Electrohydraulic control systems HSx, HMx, EOx Available for A4VSO, A4VBO, A4VSG and A4CSG Electrohydraulic control with proportional and control valve Digital electrohydraulic control systems with amplifier Control of swivel angle, pressure and power (HS5P) Usable as a special version in mooring operation (overcenter) Data sheet Spare parts & repair Electronic pressure and flow control DFE1 Electronic pressure and flow control DFE1 Available for A4VSO and A4VBO For the electrohydraulic control of pressure, flow and power Internal pilot pressure or with external control pump, optional Rapid decompression via pump by flow direction change as standard Rotary group optimized for long standby operating times Data sheet Spare parts & repair Downloads Axialkolben-Verstellpumpe A4VBO, Baureihe 1x und 3x Data Sheet | RD92122 | 2018-08-01 | German | PDF | 1,018k Product Groups: Variable pumps, open circuit, Variable pumps, open circuit Axial Piston Variable Pump A4VBO, Series 1x and 3x Data Sheet | RE92122 | 2018-08-01 | English | PDF | 1,017k Product Groups: Variable pumps, open circuit, Variable pumps, open circuit Axial Piston Variable Pump A4VBO Manual | RE92122-01-B | 2012-12-01 | English | PDF | 2.7MB Product Groups: Variable pumps, open circuit, Variable pumps, open circuit Series 10 a
